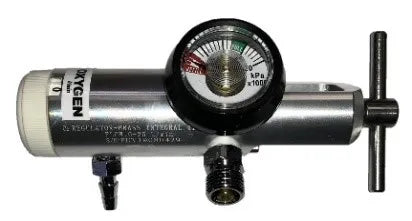

Oxygen Regulator – Pin Index – Dual Output

Technical Specifications:

Gas: Medical Oxygen

Input Connection: Pin Index - Oxygen

Material: Aluminium Body, Brass Chamber

Input Pressure: ≤ 15100 kPa (151 Bar or 2190 psi)

Output Connection: 6 mm Barb Outlet (for patient)

Output Pressure: 414 kPa (4.14 bar or 60 psi) ± 5%

Flow Setting: 0, 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 15, 25 ℓ/min

Flow Accuracy: 0 to 1 ℓ/min - Accuracy: ±20% 2 to 25 ℓ/min - Accuracy: ±15%
